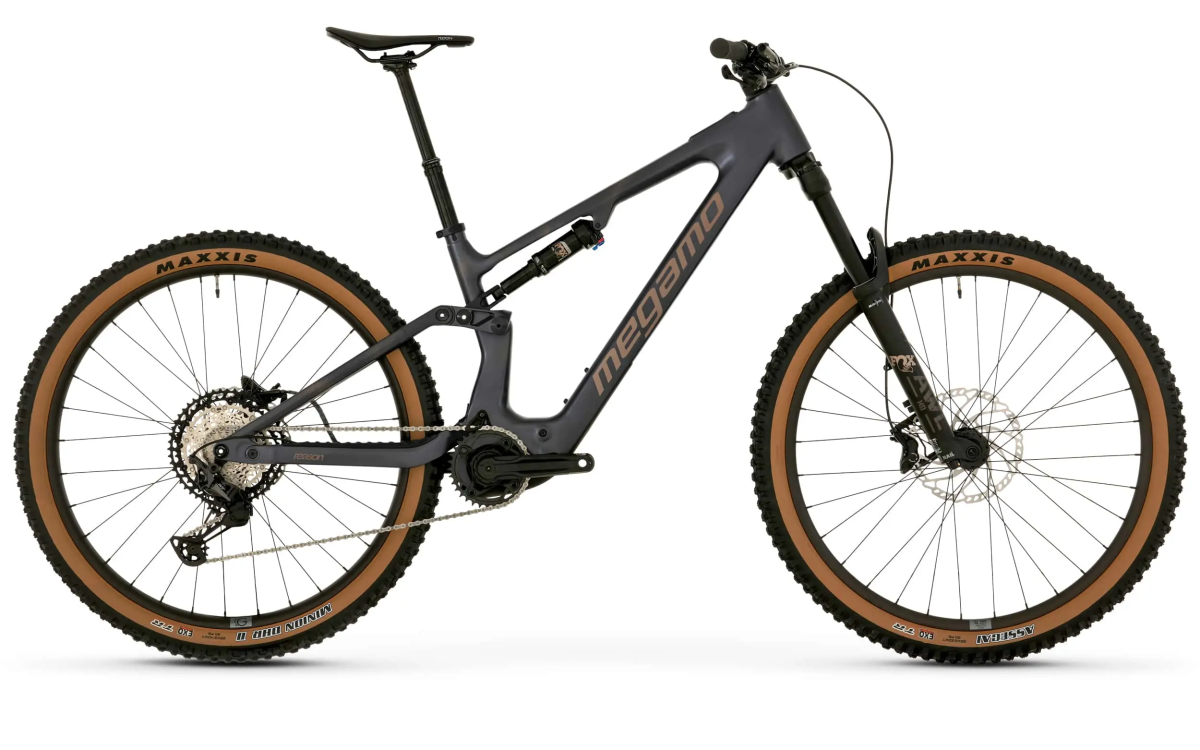

Beschreibung
Rahmen Reason AL Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 160 mm
Gabel Fox 36 Float AWL HD 29, 160mm, 15QRx110 Boost, 1.5T, 68HT, 44mm rake
Dämpfer Fox Float Rhythm, Evol LV, 210x55mm, 2 Position
Steuersatz Acros AZX-589 ZS56 blocklock 150º
Elektronische Komponenten
Antriebseinheit Avinox M1,120Nm 1000W (Boost mode) / 105Nm 1000W, 5 modos de asistencia, 150rpm
Batterie Avinox 800 Wh, 35,9V, IP56
Display Avinox DP100, 2-inch full-color OLED touchscreen, 800 nits, 326 ppi
Schaltsystem
Schaltwerk Shimano XT M8100, Shadow Plus 12-Speed
Schalthebel Shimano Deore 6100 Speed Rapidfire Plus 12-Speed
Crankset 34T BCD 104mm with chainring bolt / Forged AL6061/T6 165mm beat blasted anodized black
Kassette Shimano Deore 6100 10-51T
Bremsen
Bremsen Shimano MT520 hydraulic disc 4-Piston, 203mm
Räder
Reifen Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II
Laufradsatz Megamo 29 SL 30 ASY, Aluminium Rim, 15×110/12×148 mm
Komponenten
Lenker Megamo Alloy Butted 35 x 800 mm, 12 mm Rise, 6º Back Sweep
Vorbau Satori New Ursa 35mm
Sattelstützes Megamo Ø 31,6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 170 mm Drop
Sattel Fizik Ridon X5
